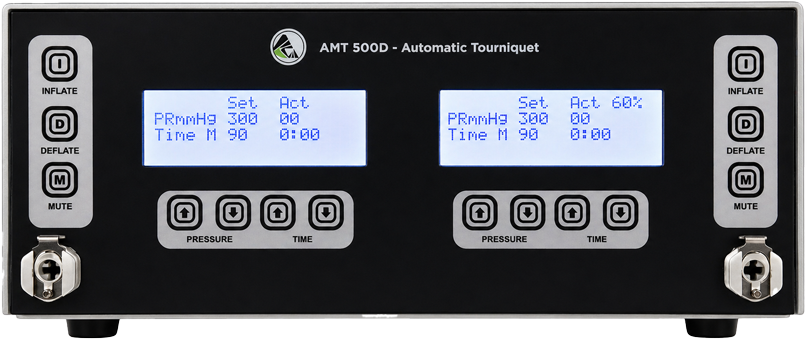

Automatic Tourniquet System – Dual Port

AMT 500D

Overview

The AMT 500D is a Dual port lightweight, advanced tourniquet system designed for optimal performance and reliability. It features an integrated air supply for seamless operation and performs, ensuring readiness and efficiency. Combining state-of-the-art technology with ease of use.

Technical Specification

Cuff Pressure

0 - 500 mmhg

Inflation

<10 Seconds

Audio Alarm Timer

0-240 Minutes

Battery Operations

270 x 228 x 102 mm

Dimension

203 x 203 x  76 mm

Weight

Less than 3 Kg.

Applications

Orthopedic Surgeries

Plastic and Reconstructive Surgeries

Trauma and Emergency Surgeries

Vascular Surgeries

Paediatric Surgeries

Features of AMT-500D

Rapid Cuff Inflation

Inflates a typical 34″ thigh cuff in less than 10 seconds. Maximum pressure can be set up to 500 mmHg.

Connector

Safety interlocking connector system with zero leakage

Port

Dual Channel for Bilateral Surgeries

Auto Diagnostic

performs auto diagnostic self-checks at every start-up, ensuring the unit will be ready to go when you need it

Battery Backup

Inbuilt battery backup providing up to 8 hours of operation during power failure

Safety Alarms

Visual and audio safety alarms for extended usage beyond set timings.

LCD Display

High-definition LCD display with segmented characters for enhanced visibility

Pressure Maintenance

Closed solenoid system ensures pressure remains constant during sudden power failure

Online Adjustments

Pressure, time, inflate, and deflate settings can be adjusted in real-time during operation.

Accessories

Imported Cuffs Compatible with multinational Standards

Autoclavable silicon material with positive locking connectors
